Frigidaire dryer model 417.49012890  Rating:  Rating
AuthorPost
 Posted: Thu Oct 28th, 2010 08:28 pm
  PM Quote Reply
1st Post
tkainz
Grasshopper


Joined: Thu Oct 28th, 2010
Location:
Posts: 2
Flavorite Brew:
Status:
Offline
I've tested the heat coil and that has continuity. I've tested all the thermostats but one. the ones I tested all show continuity (0 ohms resistance) The one I didn't test has 4 leads so I wasn't sure how to test it. there are a red and blue wire each going to one pin of the thermostat and an orange / black wire going to another pin then jumping over to the 4th pin. The schematic says that this is the control thermostat. Interesting thing...when I disconnected the leads going to the heater element and started up the dryer, each lead showed 120 volts (+/-) - using the voltmeter and testing each lead to ground. Really can't afford a new dryer so I would really like to fix this one. Thanks in advance.

Back To Top PM Quote Reply

 Posted: Thu Oct 28th, 2010 09:17 pm
  PM Quote Reply
2nd Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline
tkainz wrote: Frigidaire dryer model 417.49012890
Doesn't get hot - like my wifey!
post pictures with top removed ?  :groucho:


... The one I didn't test has 4 leads so I wasn't sure how to test it.
test for continuity across the (2) big terminals (Red and Orange/Black)

417.49012890 Wiring DIagram

If there's 120v to chassis (ground) from each side of the (removed) Heater Element,

then there should be 240v across those connections



____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Thu Oct 28th, 2010 09:32 pm
  PM Quote Reply
3rd Post
tkainz
Grasshopper


Joined: Thu Oct 28th, 2010
Location:
Posts: 2
Flavorite Brew:
Status:
Offline
Many Thanks - That looks like it might be the culprit. There was no continuity between the red and the large orange/black connectors. The same for the blue and the small orange/black connectors - no continuity. When I briefly connected the red and the orange/black wires and fired it up, the coils started generating heat. Since I have the beast all torn apart, are there any other parts you'd recommend replacing (as preventative maintenance) at the same time - since I'll be ordering a new control thermostat?

Back To Top PM Quote Reply

 Posted: Thu Oct 28th, 2010 09:39 pm
  PM Quote Reply
4th Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline
that should do it..

(the smaller terminals won't have continuity, but should have some high resistance)

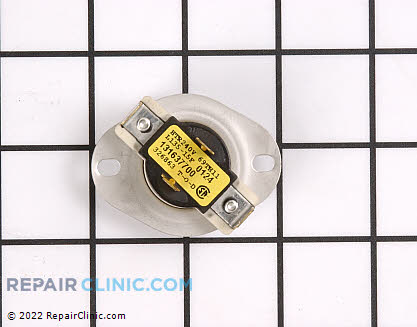

4-wire Control Thermostat 134048800

click on picture



____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Fri Oct 29th, 2010 03:32 am
  PM Quote Reply
5th Post
BrntToast
Fellow, Academy of Sublime Masters of Appliantology


Joined: Wed Mar 14th, 2007
Location: Winnipeg, Manitoba Canada
Posts: 1088
Flavorite Brew: MGD
Status:
Offline
the 2 smaller wires are a bias heater, they are connected to a small heater within the thermostat, when gentle cycle is selected those 2 wires supply voltage to a heater within the thermostat to heat it so the thermostat trips sooner

just so you know what they do incase you have to fix this puppy at a later date, but it sounds like you whipped her this time





____________________
The only stupid question is the one not asked
hope i've been helpfull, if you wish to buy Brnt beer kick here

http://brnttoast.googlepages.com/home

feel free to prvt msg frigidaire questions my way
(i dont log in every day)
