Kenmore Elite HE3t Model 110.450962400

Rate Topic

Author	Post

Posted: Wed Oct 20th, 2010 11:55 pm

Quote

1^st Post

cctxrookie
Grasshopper

Joined:	Fri Jun 4th, 2010
Location:
Posts:	15
Flavorite Brew:	bud light
Status:	Offline

Hi, I have a Kenmore Elite that will not run. I try to start it and hear about 6 clicks, like its trying to lock the door and then get a failure code. How do I test the door switch? Thanks in advance for the help.

Quote

Posted: Thu Oct 21st, 2010 12:58 am

Quote

2^nd Post

Tronicsmasta

Joined:	Wed May 30th, 2007
Location:	Woodland Hills, California USA
Posts:	423
Flavorite Brew:	Samuel Adams
Status:	Offline

on these models we find the relay goes bad on the board. but to test it, remove the door lock.

i went wayyy overboard on making this

this is to Ohm out the door switches in the door lock. door switch has latch pushed into the switch and is in locked position

____________________
It is never a bad thing to leave it to the professionals. Inexperience can lead to more damage or risk of injury. You can always call A&E Factory Service (1-800-905-9505), Sears(1-800-469-4663), or local service man you can trust (servicemagic.com).

Quote

Posted: Thu Oct 21st, 2010 01:10 am

Quote

3^rd Post

Samurai Appliance Repair Man
Fermented Grand Master of Appliantology

Joined:	Mon Mar 21st, 2005
Location:	Otterville, New Hampshire USA
Posts:	16081
Flavorite Brew:	Kirin Ichiban
Status:	Offline

Nice diagram, TM!

cct, the other thing to check is the leetle beety nub on that latch assembly. See this post for details==> http://fixitnow.com/wp/2010/09/08/special-samurai-repair-washer-repair-tip-whirlpool-duet-or-kenmore-he3-washer-wont-start-or-run/

____________________
To ask a question, use our new forums==> http://appliantology.org

365-Day No-Hassle Return Policy on all parts purchased through this site, even electrical parts that have been installed!

Quote

Posted: Thu Oct 21st, 2010 02:57 am

Quote

4^th Post

cctxrookie
Grasshopper

Joined:	Fri Jun 4th, 2010
Location:
Posts:	15
Flavorite Brew:	bud light
Status:	Offline

Thanks for the help guys. Is it better to pull the switch down through the bottom, or do I have to take off the front?

Quote

Posted: Thu Oct 21st, 2010 03:08 am

Quote

5^th Post

Tronicsmasta

Joined:	Wed May 30th, 2007
Location:	Woodland Hills, California USA
Posts:	423
Flavorite Brew:	Samuel Adams
Status:	Offline

no.

Quote

Posted: Thu Oct 21st, 2010 03:12 am

Quote

6^th Post

cctxrookie
Grasshopper

Joined:	Fri Jun 4th, 2010
Location:
Posts:	15
Flavorite Brew:	bud light
Status:	Offline

Thanks again for the help. I'll try it.

Quote

Posted: Thu Oct 21st, 2010 03:16 am

Quote

7^th Post

Tronicsmasta

Joined:	Wed May 30th, 2007
Location:	Woodland Hills, California USA
Posts:	423
Flavorite Brew:	Samuel Adams
Status:	Offline

i will provide you with the full service manual if you upgrade to an appliance apprentice. it will give you much more incite on how to be SURE its the door lock

http://apprentice.applianceguru.com

Quote

Posted: Thu Oct 21st, 2010 03:37 am

Quote

8^th Post

cctxrookie
Grasshopper

Joined:	Fri Jun 4th, 2010
Location:
Posts:	15
Flavorite Brew:	bud light
Status:	Offline

I checked my switch per your awesome diagram. From left to right on top, 1st measurement checked good, middle checked good (60.6 ohms) & last measurement was open. Bottom left was 124 ohms & bottom right was open. I did as you instructed, inserted the door lock and tried to start a cycle. I heard the 1st click then unplugged. Was that correct, is my switch bad? Thanks again.

Quote

Posted: Thu Oct 21st, 2010 03:45 am

Quote

9^th Post

Tronicsmasta

Joined:	Wed May 30th, 2007
Location:	Woodland Hills, California USA
Posts:	423
Flavorite Brew:	Samuel Adams
Status:	Offline

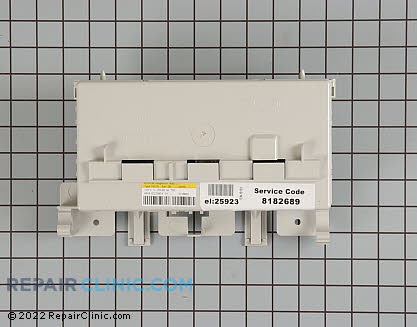

well the door lock has to lock before you can read the bottom switches. if its just clicking up in the back top of the machine then i assure you, you have a bad ccu.

http://www.repairclinic.com/PartDetail/Control-Module/1164545

Quote

Posted: Thu Oct 21st, 2010 04:02 am

Quote

10^th Post

cctxrookie
Grasshopper

Joined:	Fri Jun 4th, 2010
Location:
Posts:	15
Flavorite Brew:	bud light
Status:	Offline

I've upgraded to apprentice. Can you send me the service manual. Should I check anything else on the CCU before spending the $200.00? Thanks,

Quote

Posted: Thu Oct 21st, 2010 04:11 am

Quote

11^th Post

Tronicsmasta

Joined:	Wed May 30th, 2007
Location:	Woodland Hills, California USA
Posts:	423
Flavorite Brew:	Samuel Adams
Status:	Offline

Pm'd Service Manual

Please see pages:
page 27 is location of door lock.
page 31 is how to access the door lock... just like i posted.
page 32 has a warning on putting the door lock back in...
page 41 shows the pin outs for the door lock solenoids.
pin 3 to 1 at the control, measure voltage... it should be 120v when your hearing the clicking. its a bit tough to get your meter leads in it... but if you see 0v, then your relay isn't closing.
page 46 has the locking and unlocking routine.

any questions, come back here!

Quote

Posted: Thu Oct 21st, 2010 04:20 am

Quote

12^th Post

cctxrookie
Grasshopper

Joined:	Fri Jun 4th, 2010
Location:
Posts:	15
Flavorite Brew:	bud light
Status:	Offline

Thanks again. I'll try to download the manual.

Quote

Posted: Fri Oct 29th, 2010 04:16 pm

Quote

13^th Post

cctxrookie
Grasshopper

Joined:	Fri Jun 4th, 2010
Location:
Posts:	15
Flavorite Brew:	bud light
Status:	Offline

I received my CCU from RepairClinic and installed it, removing one cable at a time and connecting it to the new CCU. I powered up and push Normal cycle, but nothing happens. I tried running the test, but after pushing all the buttons I don't get the C00 as I should. Can anyone help me? Thanks.

Quote

Posted: Sat Oct 30th, 2010 04:21 pm

Quote

14^th Post

certified tech group 51
Fellow, Academy of Sublime Masters of Appliantology

Joined:	Mon Mar 10th, 2008
Location:	Tidewater, Oregon USA
Posts:	1178
Flavorite Brew:	natural ice
Status:	Offline

From your first post. What was the 'failure code' ??

Quote

Posted: Sat Oct 30th, 2010 09:55 pm

Quote

15^th Post

Samurai Appliance Repair Man
Fermented Grand Master of Appliantology

Joined:	Mon Mar 21st, 2005
Location:	Otterville, New Hampshire USA
Posts:	16081
Flavorite Brew:	Kirin Ichiban
Status:	Offline

Samurai Appliance Repair Man wrote:
Nice diagram, TM!

cct, the other thing to check is the leetle beety nub on that latch assembly. See this post for details==> http://fixitnow.com/wp/2010/09/08/special-samurai-repair-washer-repair-tip-whirlpool-duet-or-kenmore-he3-washer-wont-start-or-run/

cctx, did you check that nub on the door latch assembly?

Quote

Posted: Sun Oct 31st, 2010 03:14 am

Quote

16^th Post

cctxrookie
Grasshopper

Joined:	Fri Jun 4th, 2010
Location:
Posts:	15
Flavorite Brew:	bud light
Status:	Offline

Yes, the nub is there. Before I could run a cycle and the machine would try to start and then give me the d FL code. Now I push normal cycle and don't get any response from the machine. If I press start, the handwash/delicate light blinks & shows 2 hours in the time display.

Quote

Posted: Sun Oct 31st, 2010 06:47 pm

Quote

17^th Post

certified tech group 51
Fellow, Academy of Sublime Masters of Appliantology

Joined:	Mon Mar 10th, 2008
Location:	Tidewater, Oregon USA
Posts:	1178
Flavorite Brew:	natural ice
Status:	Offline

What does the catch on the door look like....... Is it all there?? It is difficult to install the wrong connectors unless you pushed the connectors too hard and bent the alignment fins........Even to this day, and I have changed a few, I still mark the connectors and the old C.C.U., to help with the new install. Your tech sheet will have a schematic that you can use to verify the correct connectors to the C.C.U. ................

Quote

Posted: Wed Nov 3rd, 2010 05:19 pm

Quote

18^th Post

cctxrookie
Grasshopper

Joined:	Fri Jun 4th, 2010
Location:
Posts:	15
Flavorite Brew:	bud light
Status:	Offline

I finally got a cycle to work, but it seems like my front control isn't working properly. the only cycle I can get to work is heavy wash. The door does lock and the cycle runs, but I can't adjust time or anything else. Any suggestions?
Thanks in advance for the help.
