Sears side by side with ICE& water in door  Rate Topic
AuthorPost
 Posted: Thu Aug 26th, 2010 02:00 am
  PM Quote Reply
1st Post
samuraidad
Grasshopper


Joined: Wed Aug 25th, 2010
Location:
Posts: 5
Flavorite Brew: coke
Status:
Offline
I have a sears side by side refrig (model 106.5182200) with water and ice on the door. The clear plastic ice guide slips down keeping the flap to stay open.  I guess you have to remove the dispendes front cover but do not see any screws. How do you get the face cover off?Is it just something broken on the ice guide or something more.

Back To Top PM Quote Reply

 Posted: Thu Aug 26th, 2010 02:10 am
  PM Quote Reply
2nd Post
appl.tech.29501
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sun Oct 7th, 2007
Location: South Carolina USA
Posts: 6784
Flavorite Brew: waffle house coffee
Status:
Offline
More than likely it's more than the ice guide that broken. look under neath the bottom edge of the dispenser front and you will see 2 slots, one on each end. Insert a flat head screwdriver into the slot and twist. It will feel like your going to break it  but you wont (not saying that it can't ;)). Once released, lift up and unplug the harness then you can remove the couple 1/4" screws holding in the switch housing. Focus your attention where the pin that goes through the flapper and through the plastic molded tabs that are made into the dispenser housing. Are one of the tabs broken off? If so, you will have to have a special kit in order to repair. Let us know if you get stuck or need help in anyway.

Also double check that model#



____________________
If you would like to make a donation you may do so at the link below

http://homepage.mac.com/zenzoidman/appl.tech.29501/
Back To Top PM Quote Reply

 Posted: Thu Aug 26th, 2010 02:19 am
  PM Quote Reply
3rd Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline
106.5182200

:ooo: My eyesight isn't as good as it once was
(see RegUS_PatOff http://www.youtube.com/watch?v=oPAY2LsKVEw)
but from here it looks like your model number may be

106.51282200

or

106.51582200



____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Thu Aug 26th, 2010 04:19 am
  PM Quote Reply
4th Post
samuraidad
Grasshopper


Joined: Wed Aug 25th, 2010
Location:
Posts: 5
Flavorite Brew: coke
Status:
Offline
Thanks I did recheck the model# guess my age is catching up with me even with glasses. The correct # is 106.51582200. What is the special kit you are referring to and what parts would it replace?

Thanks again I will be test my skill later tomorrow.



Back To Top PM Quote Reply

 Posted: Thu Aug 26th, 2010 04:35 am
  PM Quote Reply
5th Post
appl.tech.29501
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sun Oct 7th, 2007
Location: South Carolina USA
Posts: 6784
Flavorite Brew: waffle house coffee
Status:
Offline
If you find that the plastic tabs are broken you will need this kit.

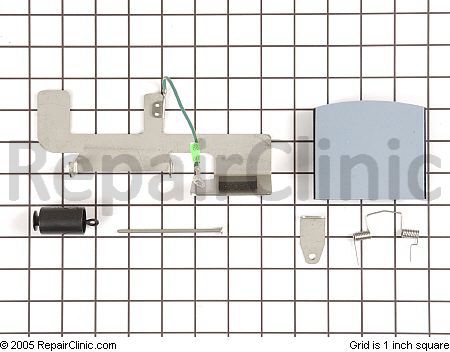

Ice Chute Door Kit Link (broken tabs)




Standard Ice Chute kit for your unit.

Ice Chute Kit Link (standard)




if you just need the ice guide

Ice Guide Link




____________________
If you would like to make a donation you may do so at the link below

http://homepage.mac.com/zenzoidman/appl.tech.29501/
Back To Top PM Quote Reply

 Posted: Thu Aug 26th, 2010 04:43 am
  PM Quote Reply
6th Post
samuraidad
Grasshopper


Joined: Wed Aug 25th, 2010
Location:
Posts: 5
Flavorite Brew: coke
Status:
Offline
awesome thank you

Back To Top PM Quote Reply

 Posted: Fri Aug 27th, 2010 03:00 pm
  PM Quote Reply
7th Post
samuraidad
Grasshopper


Joined: Wed Aug 25th, 2010
Location:
Posts: 5
Flavorite Brew: coke
Status:
Offline
Well I did get the thedispenser cover off, no problem removed the 4 screws to remove the housing but it appears to be glued on. I used a sharpened putty knife to go around the seal  however it is still attached. Now I can see the the guts and the clear ice guide appears to be the problem. It looks like there are suppose to be 3 tabs, with 2 on the top and 1 on the bottom. I have only 1 on the top andd 1 on the bottom. To replace the chute can I do this without pulling the rest of the unit out? If not HELP. :?

Back To Top PM Quote Reply

 Posted: Fri Aug 27th, 2010 03:33 pm
  PM Quote Reply
8th Post
appl.tech.29501
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sun Oct 7th, 2007
Location: South Carolina USA
Posts: 6784
Flavorite Brew: waffle house coffee
Status:
Offline
Yes, no need to tear down any further, just remove the old ice guide and snap in the new one (carefully), those tabs break pretty easy.



____________________
If you would like to make a donation you may do so at the link below

http://homepage.mac.com/zenzoidman/appl.tech.29501/
Back To Top PM Quote Reply

 Posted: Fri Aug 27th, 2010 04:27 pm
  PM Quote Reply
9th Post
samuraidad
Grasshopper


Joined: Wed Aug 25th, 2010
Location:
Posts: 5
Flavorite Brew: coke
Status:
Offline
awesome



thank you:)

Back To Top PM Quote Reply
