| Posted: Mon Jul 19th, 2010 10:28 pm |
|
1st Post |
|
Gennadi Grasshopper
|

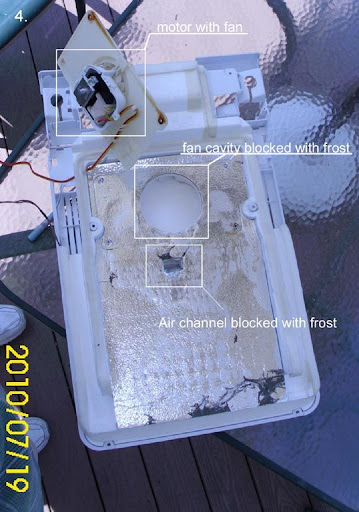

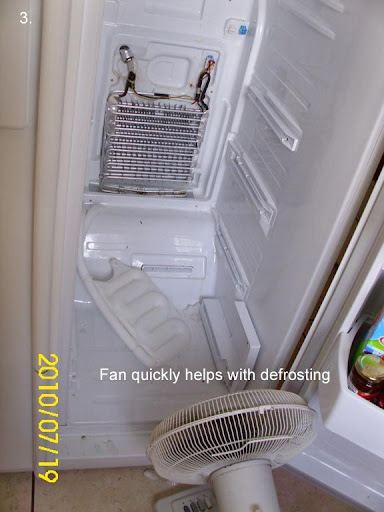

My Samsung RS253BAWW started making scratching noise g=few months ago. At some point sounds were gone, then re-appeared again. Yesterday I noticed that freezer was working fine, but fridge side was not cold enough (appr 40F) and fridge temperature was flashing on display. Today I fixed it. Here is how: 1.  You will have to remove few bottom shelves and use Philips screw driver to undo several screws, shown on PIC1 above. They hold rear panel which has to come off. Few of the screws are hidden behind one large and two small snap doors. There are also two electrical jacks on the right side which you have to disconnect. Remember their location to properly connect them back at the end of your fix! 2.  This picture shows cooling coil all covered in frost and chunks of ice. It has to be defrosted and dried. 3.  Placing a fan in fridge open door took care of defrosting rather fast. When all ice is gone, wipe all cavities with dry cloth. 4.  Whole rear panel was placed in the sun outside and in 40 minutes was clean and dry. My panel had ice build-up inside the small rectangular air channel below the fan cavity. Some ice was reaching motor fan and this was causing scratchig noises for few months and eventually blocked fan blades. This causes ice build up to speed up. Once everything was defrosted cleaned and dried, I assembled everything back together and -VOILA! - fridge works fine and silently again! Hope this may help someone. Enjoy!
|
||||||||||||||
| |||||||||||||||
| Posted: Mon Jul 19th, 2010 10:42 pm |
|
2nd Post |
|
RegUS_PatOff Fellow, Academy of Sublime Masters of Appliantology
|
nice pictures ... that manual defrosting will work, but problem will return in a few weeks ... classic Samsung Defrost problem .. may be a bad Defrost Heater Element .. look closely at the Defrost Element connections.. one may be broken .. (bottom picture)
____________________ The new repair forums==> http://appliantology.org RegUS_PatOff http://www.youtube.com/watch?v=oPAY2LsKVEw my video production: “Easter Seals Walk With Me” http://www.youtube.com/watch?v=-EBiLyYXMiA |
|||||||||||||
| ||||||||||||||
| Posted: Mon Jul 19th, 2010 10:45 pm |
|
3rd Post |
|
Samurai Appliance Repair Man Fermented Grand Master of Appliantology
|
Great photos, nicely annotated. But I fear you'll be repeating this procedure in a few short weeks because it doesn't appear that you've addressed the root cause of the problem: why the refrigerator didn't defrost properly and automatically-- as it's supposed to do-- in the first place. Could be a burned out defrost heater-- common affliction with these boxes.
____________________ To ask a question, use our new forums==> http://appliantology.org 365-Day No-Hassle Return Policy on all parts purchased through this site, even electrical parts that have been installed! |
||||||||||||||
| |||||||||||||||
| Posted: Mon Jul 19th, 2010 11:24 pm |
|
4th Post |
|
Gennadi Grasshopper
|
Hmmm...Quite possibly you are right... Will see... It will be easier now to deal with the probme, since I am a bit familiar with the "map". And if I have to fix defroster, I will post a new one. Thanks,
|
|||||||||||||
| ||||||||||||||
| Posted: Tue Jul 20th, 2010 06:26 pm |
|
5th Post |
|
denrayr Fellow, Academy of Sublime Masters of Appliantology
|
more common thatn a bad heater is a bad thermal fuse. its in a sealed pouch zip tied to the right side of the evaperator coil.
____________________ RedRock Appliance Service 435-773-7838 http://www.redrockrepair.com Serving St George and Southern Utah |
||||||||||||||
| |||||||||||||||
