frigidaire crer7900as1  Rate Topic
AuthorPost
 Posted: Fri Nov 19th, 2010 08:53 pm
  PM Quote Reply
1st Post
hobzengrave
Grasshopper


Joined: Tue Nov 16th, 2010
Location: LACONIA, USA
Posts: 10
Flavorite Brew:
Status:
Offline
after installing a new rear drum bearing assembly, the dryer will not start, it has power as the drum light comes on....
any suggestions?

Back To Top PM Quote Reply

 Posted: Fri Nov 19th, 2010 09:10 pm
  PM Quote Reply
2nd Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline

Does the Timer Motor run ?

yes - check the Thermal Limiter # 36 and all other wiring









____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Fri Nov 19th, 2010 09:40 pm
  PM Quote Reply
3rd Post
hobzengrave
Grasshopper


Joined: Tue Nov 16th, 2010
Location: LACONIA, USA
Posts: 10
Flavorite Brew:
Status:
Offline
Not sure if the timer motor runs, I'm in over my head
the door light comes on, but when shut, the dryer does not tumble, have checked all wiring again,

Back To Top PM Quote Reply

 Posted: Fri Nov 19th, 2010 09:49 pm
  PM Quote Reply
4th Post
BrntToast
Fellow, Academy of Sublime Masters of Appliantology


Joined: Wed Mar 14th, 2007
Location: Winnipeg, Manitoba Canada
Posts: 1088
Flavorite Brew: MGD
Status:
Offline
if you removed the wires for the door switch, try starting the dryer with the door open





____________________
The only stupid question is the one not asked
hope i've been helpfull, if you wish to buy Brnt beer kick here

http://brnttoast.googlepages.com/home

feel free to prvt msg frigidaire questions my way
(i dont log in every day)
Back To Top PM Quote Reply

 Posted: Fri Nov 19th, 2010 11:27 pm
  PM Quote Reply
5th Post
hobzengrave
Grasshopper


Joined: Tue Nov 16th, 2010
Location: LACONIA, USA
Posts: 10
Flavorite Brew:
Status:
Offline
I disconnected the wires that run to the door switch, during repair, everything seems to be plugged in right, anything else that could have been shorted during the install od the rear bearing

Back To Top PM Quote Reply

 Posted: Fri Nov 19th, 2010 11:31 pm
  PM Quote Reply
6th Post
BrntToast
Fellow, Academy of Sublime Masters of Appliantology


Joined: Wed Mar 14th, 2007
Location: Winnipeg, Manitoba Canada
Posts: 1088
Flavorite Brew: MGD
Status:
Offline
did you check if it starts with the door open, i suspect you reversed 2 wires

if the wirres are backwards the unit will now run with the door open, rather than closed





____________________
The only stupid question is the one not asked
hope i've been helpfull, if you wish to buy Brnt beer kick here

http://brnttoast.googlepages.com/home

feel free to prvt msg frigidaire questions my way
(i dont log in every day)
Back To Top PM Quote Reply

 Posted: Fri Nov 19th, 2010 11:43 pm
  PM Quote Reply
7th Post
hobzengrave
Grasshopper


Joined: Tue Nov 16th, 2010
Location: LACONIA, USA
Posts: 10
Flavorite Brew:
Status:
Offline
the only wires I unhooked was the plug that runs from the door switch to the top back of the dryer, did not unhook the wires on the door switch itself

Back To Top PM Quote Reply

 Posted: Sat Nov 20th, 2010 12:40 am
  PM Quote Reply
8th Post
BrntToast
Fellow, Academy of Sublime Masters of Appliantology


Joined: Wed Mar 14th, 2007
Location: Winnipeg, Manitoba Canada
Posts: 1088
Flavorite Brew: MGD
Status:
Offline
with door open does the drum light go out if you press the door switch with your finger?  if it does try starting dryer while holding the switch in with your finger

if it still does not start you need to test the thermal safety, its the round disk on the top right of the heater shroud, easy test is to remove the 2 wires and tape them togeather, then try to start the dryer, if it starts like that you need to replace this part

DO NOT use the dryer with the wires joined and the safety bypassed!!!



____________________
The only stupid question is the one not asked
hope i've been helpfull, if you wish to buy Brnt beer kick here

http://brnttoast.googlepages.com/home

feel free to prvt msg frigidaire questions my way
(i dont log in every day)
Back To Top PM Quote Reply

 Posted: Sat Nov 20th, 2010 01:45 pm
  PM Quote Reply
9th Post
hobzengrave
Grasshopper


Joined: Tue Nov 16th, 2010
Location: LACONIA, USA
Posts: 10
Flavorite Brew:
Status:
Offline
I tested the thermal safety, taped the two wires together, still nothing

Back To Top PM Quote Reply

 Posted: Sat Nov 20th, 2010 02:06 pm
  PM Quote Reply
10th Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline

A wire may have been knocked off somewhere.

The Heater Element may have been broken.

Some electrical tests may need to be done.





____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Sat Nov 20th, 2010 02:15 pm
  PM Quote Reply
11th Post
hobzengrave
Grasshopper


Joined: Tue Nov 16th, 2010
Location: LACONIA, USA
Posts: 10
Flavorite Brew:
Status:
Offline
thanks, I will have someone start those next, I have checked all the wires I could find, all seem to be connected, the heater element does look in tact

Back To Top PM Quote Reply

 Posted: Sat Nov 20th, 2010 03:18 pm
  PM Quote Reply
12th Post
hobzengrave
Grasshopper


Joined: Tue Nov 16th, 2010
Location: LACONIA, USA
Posts: 10
Flavorite Brew:
Status:
Offline

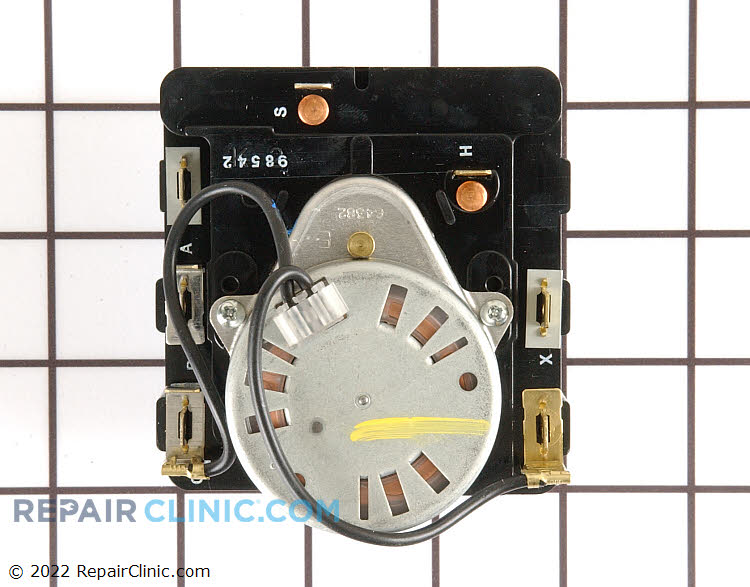

I found a red/black wire disconnected from behind the top cover on the panel of dials, it appears to be from the farthest right dial, the timer, would I be able to find a pic of how those wires all connect?

Back To Top PM Quote Reply

 Posted: Sat Nov 20th, 2010 04:44 pm
  PM Quote Reply
13th Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline


there shoud be Red/Black wires on the Timer B Terminal

(left side, center)




____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Sat Nov 20th, 2010 05:28 pm
  PM Quote Reply
14th Post
hobzengrave
Grasshopper


Joined: Tue Nov 16th, 2010
Location: LACONIA, USA
Posts: 10
Flavorite Brew:
Status:
Offline
I'm probably not describing it right, from the diagram "controllers/top panel", it is number 1 timer-dryer "t"'
large dial far right, red and black wire connected together , several pins left open on back of dial, thanks

Back To Top PM Quote Reply

 Posted: Sat Nov 20th, 2010 05:32 pm
  PM Quote Reply
15th Post
hobzengrave
Grasshopper


Joined: Tue Nov 16th, 2010
Location: LACONIA, USA
Posts: 10
Flavorite Brew:
Status:
Offline
sorry, I see now that is the right switch, now, is the schematic the only way to tell how the wires connect to it?

Back To Top PM Quote Reply

 Posted: Sat Nov 20th, 2010 07:07 pm
  PM Quote Reply
16th Post
hobzengrave
Grasshopper


Joined: Tue Nov 16th, 2010
Location: LACONIA, USA
Posts: 10
Flavorite Brew:
Status:
Offline
Thanks for all your help, all set now!
