Whirlpool GGW9250PW0 Diagnostic question  Rate Topic
AuthorPost
 Posted: Sat Sep 5th, 2009 11:14 am
  PM Quote Reply
21st Post
NCSU_laundry_tech



Joined: Mon Aug 18th, 2008
Location: Raleigh, North Carolina USA
Posts: 940
Flavorite Brew: The one in my hand
Status:
Offline
missed part about gas dryer. relay is 120 on board not 240



____________________
To alcohol! The cause of... and solution to... all of life's problems.

Doc Watson - Shady Grove: http://www.youtube.com/watch?v=b-kaG1NuLZM

riding my dirtbike in clayton NC: http://www.youtube.com/watch?v=NnCmY0vzmYM
Back To Top PM Quote Reply

 Posted: Sat Sep 5th, 2009 11:21 am
  PM Quote Reply
22nd Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline
NCSU_laundry_tech wrote: missed part about gas dryer. relay is 120 on board not 240
RegUS_PatOff wrote: ... shouldn't have fire without Motor Spin (Motor Centrifugal Switch) ..
joetry wrote: Tried with second motor/switch...   same problem...

Then the Black Wire from the Motor Centrifugal Switch to the Ignitor, MOV, or Gas Valve Coils, is shorted to ground ...



____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Sat Sep 5th, 2009 05:47 pm
  PM Quote Reply
23rd Post
joetry
Merit Apprentice Appliantologist


Joined: Wed Sep 2nd, 2009
Location:
Posts: 35
Flavorite Brew: Yuengling
Status:
Offline
All: I want to thank you for your insight and suggestions...with your guidance I was able to resurrect the dryer that the tech told me need to be replaced... Not sure if I was part of a scam or not but what I found was that the tech reversed the wires between the belt switch and centrifugal switch M4 was on m5 and 5 on 4. I put the original controller board back in ... spin and fire.. but I think all the tinkering I popped a 5volt lead to the display panel... the leds are not showing clear numbers... told the wife she just needs to wave her hand in front of her face real fast... I will figure that out after the long weekend...

So the bigger question... the original problem of spin no heat seems to have vanished... all original components are back in... COuld it have been a simple as a loose connection... lords know I pulled them all off and back on numerous times...

Anyway.... enjoy the weekend... I will hoist many a cold one for the board!!!!

J



____________________
jl
Back To Top PM Quote Reply

 Posted: Sat Sep 5th, 2009 07:20 pm
  PM Quote Reply
24th Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline
joetry wrote: ... the tech reversed the wires between the belt switch and centrifugal switch M4 was on m5 and 5 on 4....

OK... but shouldn't cause the fire without Spin problem ...

That would be connection 6M ..

take a closer look at all of them



____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Sat Sep 5th, 2009 08:26 pm
  PM Quote Reply
25th Post
joetry
Merit Apprentice Appliantologist


Joined: Wed Sep 2nd, 2009
Location:
Posts: 35
Flavorite Brew: Yuengling
Status:
Offline
Unless I read it wrong it was 5 but you might be right. I will double check.



____________________
jl
Back To Top PM Quote Reply

 Posted: Sat Sep 5th, 2009 10:48 pm
  PM Quote Reply
26th Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline
If 5M White & 6M Black were transposed, that would have given you:
fire and NO Spin ...



____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Tue Nov 10th, 2009 06:01 pm
  PM Quote Reply
27th Post
joetry
Merit Apprentice Appliantologist


Joined: Wed Sep 2nd, 2009
Location:
Posts: 35
Flavorite Brew: Yuengling
Status:
Offline
I'm back for a second round...  Looking for a suggestion as I at the end of my rope.  Got the dryer working and it was fine.  Aboit a month ago the High Limit Thermostat went.  Actually had some one come out and replace.  Today the High Limit Thermostat went again.  Airflow is fine....

Any suggestion on what I need to replace next to correct this constant failure of the HLT.

Thermal fuse is ohm at 0

Thank in advance....




____________________
jl
Back To Top PM Quote Reply

 Posted: Tue Nov 10th, 2009 06:27 pm
  PM Quote Reply
28th Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline


The High Limit Thermostat is self re-setting ...

what part number did he replace ?

What were the symptoms before it was replaced ?











____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Tue Nov 10th, 2009 06:39 pm
  PM Quote Reply
29th Post
joetry
Merit Apprentice Appliantologist


Joined: Wed Sep 2nd, 2009
Location:
Posts: 35
Flavorite Brew: Yuengling
Status:
Offline
FYI:  Thermistor is ohm'd out at room temp 10  fuse is 0




____________________
jl
Back To Top PM Quote Reply

 Posted: Tue Nov 10th, 2009 06:40 pm
  PM Quote Reply
30th Post
joetry
Merit Apprentice Appliantologist


Joined: Wed Sep 2nd, 2009
Location:
Posts: 35
Flavorite Brew: Yuengling
Status:
Offline
Problem before was spin no heat...  he replaced the High limit switch (second one)



____________________
jl
Back To Top PM Quote Reply

 Posted: Tue Nov 10th, 2009 06:51 pm
  PM Quote Reply
31st Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline
RegUS_PatOff wrote: The High Limit Thermostat is self re-setting ...

what part number did he replace ?

Thermistor should read about 10k (10,000) ohms at room temperature.





____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Tue Nov 10th, 2009 06:53 pm
  PM Quote Reply
32nd Post
joetry
Merit Apprentice Appliantologist


Joined: Wed Sep 2nd, 2009
Location:
Posts: 35
Flavorite Brew: Yuengling
Status:
Offline

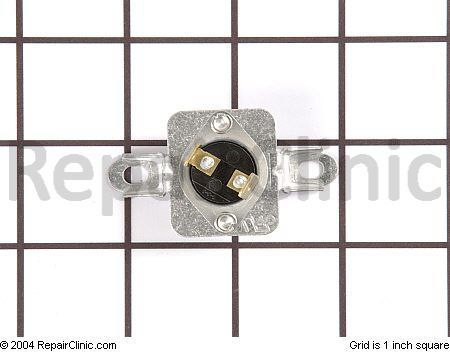

I don't know the part... but it looks like the picture above.



____________________
jl
Back To Top PM Quote Reply

 Posted: Tue Nov 10th, 2009 08:40 pm
  PM Quote Reply
33rd Post
joetry
Merit Apprentice Appliantologist


Joined: Wed Sep 2nd, 2009
Location:
Posts: 35
Flavorite Brew: Yuengling
Status:
Offline
Looking at the techsheet..  there looks like three things Thermal Fuse, Thermistor and logic board.   I have a new logic board that I haven't put in ( it was left by the last tech that came out on the 1st go around..).

Could there be a short some where in this run that would blow the HLT out...  is it worth replacing the Thermistor?

or do I keep a few HLT on hand :)




____________________
jl
Back To Top PM Quote Reply

 Posted: Tue Nov 10th, 2009 10:28 pm
  PM Quote Reply
34th Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline
RegUS_PatOff wrote: RegUS_PatOff wrote: The High Limit Thermostat is self re-setting ...

what part number did he replace ?



What part number did he use ?

The High-Limit is self re-setting, it shouldn't go bad.

If it does, it doesn't "open", it'll stay closed when "hot" and then the Thermal Fuse will blow.



____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Tue Nov 10th, 2009 10:47 pm
  PM Quote Reply
35th Post
joetry
Merit Apprentice Appliantologist


Joined: Wed Sep 2nd, 2009
Location:
Posts: 35
Flavorite Brew: Yuengling
Status:
Offline
So you kind of validate why I hate using others to do what I could do with a little diligence.  All I know is that he replaced it and it worked.

I called the service company and all I got was that he noted he changed the High Limit Thermo... they were going to get me the part number.

In his troubleshooting he actually jumper out the switch and it worked...

Dumb question... know the answer but could the Thermal fuse be the issue... I know it is either good or bad... which would make me think there is a short or loose wire that is shorting out something...

sorry for the cryptic message.. trying to deal with this while battle the flu





____________________
jl
Back To Top PM Quote Reply

 Posted: Wed Nov 11th, 2009 03:27 am
  PM Quote Reply
36th Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline
joetry wrote: ... could the Thermal fuse be the issue...


Themal Fuse could be bad, but you tested it ...



click on picture



____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Wed Nov 11th, 2009 04:45 am
  PM Quote Reply
37th Post
joetry
Merit Apprentice Appliantologist


Joined: Wed Sep 2nd, 2009
Location:
Posts: 35
Flavorite Brew: Yuengling
Status:
Offline
What are the chances of it being marginal...  I know kind of like being a little pregnant.   So if the fuse is ohm'ing out correctly... do I still replace it as suspect..

Is there somewhere in the harness I should be looking for a short.

Also notices in the tech sheet that if thermistor test out OK change control logic.  I have the board but would still like to know that it is actually fixing it or am I just going to be back in this spot in a month...

Is there something about the load in the dryer that could be causing this... it seems that on timed dry with a heavy load is when this fails...

Thanks!!!



____________________
jl
Back To Top PM Quote Reply

 Posted: Wed Nov 11th, 2009 05:20 am
  PM Quote Reply
38th Post
kdog
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sun May 8th, 2005
Location: Calgary, Alberta Canada
Posts: 2560
Flavorite Brew: dickens cider
Status:
Offline
Is the glow coil lighting up on the gas valve?



____________________
Can Ye spare some 'cutter me brutha ?

http://web.me.com/zenzoidman/kdog/
Back To Top PM Quote Reply

 Posted: Wed Nov 11th, 2009 05:30 am
  PM Quote Reply
39th Post
joetry
Merit Apprentice Appliantologist


Joined: Wed Sep 2nd, 2009
Location:
Posts: 35
Flavorite Brew: Yuengling
Status:
Offline
Prior to replacing HLT no... after replacing yes.  fires up fine.



____________________
jl
Back To Top PM Quote Reply

 Posted: Wed Nov 11th, 2009 05:45 am
  PM Quote Reply
40th Post
kdog
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sun May 8th, 2005
Location: Calgary, Alberta Canada
Posts: 2560
Flavorite Brew: dickens cider
Status:
Offline
If the burner is firing, is there good airflow?



____________________
Can Ye spare some 'cutter me brutha ?

http://web.me.com/zenzoidman/kdog/
Back To Top PM Quote Reply
