Whirlpool Gold Built In Microwave GH7155H5  Rating:  Rating
AuthorPost
 Posted: Sun Jul 25th, 2010 07:09 am
  PM Quote Reply
41st Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline
if the probes can reach it's Therminals ..





____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Sun Jul 25th, 2010 06:25 pm
  PM Quote Reply
42nd Post
Shawnna



Joined: Wed Jan 4th, 2006
Location: Seattle Area, Washington USA
Posts: 77
Flavorite Brew: Corona
Status:
Offline
Shawnna wrote: RegUS_PatOff wrote: Did you check your Wall Outlet for correct voltage
(or plug something else into Outlet)

If you could check the Oven Thermostat # 7 in diagram.

should also read 000 as a Fuse


I did plug in my hot iron for my hair into the wall outlet and it was fine.

The Thermostat appears to be in a housing of some sort.  Can I just stick the meter thingies in the housing to check it?


Okay....   I uninstalled the unit from the wall and took off the outer cabinet.  I checked the thermostat and it read 000, same as fuse.

What should I check next?



____________________
"The only thing we found that makes the emptiness bearable is................... each other."

From the movie "Contact"
Back To Top PM Quote Reply

 Posted: Sun Jul 25th, 2010 06:41 pm
  PM Quote Reply
43rd Post
appl.tech.29501
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sun Oct 7th, 2007
Location: South Carolina USA
Posts: 6784
Flavorite Brew: waffle house coffee
Status:
Offline
I can't view you schematic right now, but you are going to need to verify that the board is getting 120 VAC to it...stay turned someone will help



____________________
If you would like to make a donation you may do so at the link below

http://homepage.mac.com/zenzoidman/appl.tech.29501/
Back To Top PM Quote Reply

 Posted: Sun Jul 25th, 2010 07:16 pm
  PM Quote Reply
44th Post
Shawnna



Joined: Wed Jan 4th, 2006
Location: Seattle Area, Washington USA
Posts: 77
Flavorite Brew: Corona
Status:
Offline
appl.tech.29501 wrote: I can't view you schematic right now, but you are going to need to verify that the board is getting 120 VAC to it...stay turned someone will help
Okay.  But please give me very specific and detailed instructions on where to put the two probes on the meter thingy - on both ends of it!  As you can see, I'm pretty much without a clue.




____________________
"The only thing we found that makes the emptiness bearable is................... each other."

From the movie "Contact"
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 01:15 am
  PM Quote Reply
45th Post
Shawnna



Joined: Wed Jan 4th, 2006
Location: Seattle Area, Washington USA
Posts: 77
Flavorite Brew: Corona
Status:
Offline
Help?

Did you guys give up on me?

I'm not sure what to do next.  Should I find a service repair shop and take it in?  Buy a new one?

Any guidance would be most welcome.

:D



____________________
"The only thing we found that makes the emptiness bearable is................... each other."

From the movie "Contact"
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 01:25 am
  PM Quote Reply
46th Post
appl.tech.29501
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sun Oct 7th, 2007
Location: South Carolina USA
Posts: 6784
Flavorite Brew: waffle house coffee
Status:
Offline
hang on just a min. darlin....bout to get all over it like white on rice :)



____________________
If you would like to make a donation you may do so at the link below

http://homepage.mac.com/zenzoidman/appl.tech.29501/
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 01:39 am
  PM Quote Reply
47th Post
Shawnna



Joined: Wed Jan 4th, 2006
Location: Seattle Area, Washington USA
Posts: 77
Flavorite Brew: Corona
Status:
Offline
appl.tech.29501 wrote: hang on just a min. darlin....bout to get all over it like white on rice :)



Hangin on :-)



____________________
"The only thing we found that makes the emptiness bearable is................... each other."

From the movie "Contact"
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 02:11 am
  PM Quote Reply
48th Post
appl.tech.29501
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sun Oct 7th, 2007
Location: South Carolina USA
Posts: 6784
Flavorite Brew: waffle house coffee
Status:
Offline

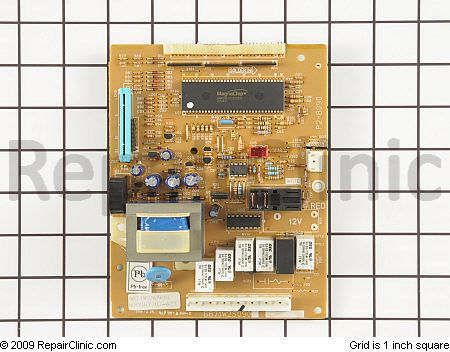

On the control board where the big plug with all the wires plugs into it you should see a red wire and a white wire side by side. Should be locations # 1 and # 3 on the board.





Turn your meter to V~ 200

With the microwave plugged in put 1 meter lead in the back of the plug where the "red" wire is....and put the other meter lead in the back of the plug where the "white" wire is. The plugs are pretty small and it may be hard to get the meter leads to make contact. if you cant then we will have to improvise.

If you do have 120 Volts then your control board is bad :(

if you don't have 120 Volts then we will have to do some testing.







____________________
If you would like to make a donation you may do so at the link below

http://homepage.mac.com/zenzoidman/appl.tech.29501/
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 02:30 am
  PM Quote Reply
49th Post
Shawnna



Joined: Wed Jan 4th, 2006
Location: Seattle Area, Washington USA
Posts: 77
Flavorite Brew: Corona
Status:
Offline
Looks like it is 163.6

Here's a pic so you can see if I followed instructions right.




____________________
"The only thing we found that makes the emptiness bearable is................... each other."

From the movie "Contact"
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 02:36 am
  PM Quote Reply
50th Post
appl.tech.29501
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sun Oct 7th, 2007
Location: South Carolina USA
Posts: 6784
Flavorite Brew: waffle house coffee
Status:
Offline
you have your meter set wrong turn it to the "red" 200 V



____________________
If you would like to make a donation you may do so at the link below

http://homepage.mac.com/zenzoidman/appl.tech.29501/
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 02:44 am
  PM Quote Reply
51st Post
Shawnna



Joined: Wed Jan 4th, 2006
Location: Seattle Area, Washington USA
Posts: 77
Flavorite Brew: Corona
Status:
Offline
oops.



Here's the version 2 with it hopefully set up right?




____________________
"The only thing we found that makes the emptiness bearable is................... each other."

From the movie "Contact"
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 02:50 am
  PM Quote Reply
52nd Post
appl.tech.29501
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sun Oct 7th, 2007
Location: South Carolina USA
Posts: 6784
Flavorite Brew: waffle house coffee
Status:
Offline
yes you have it right, double check your meter in a regular wall outlet just to confirm that your meter is still working correctly..should show 110-120 dont change the setting. 1 lead in one and the other lead in the other. if your meter shows 110-120 try it on the microwave one more time for good measure



____________________
If you would like to make a donation you may do so at the link below

http://homepage.mac.com/zenzoidman/appl.tech.29501/
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 02:55 am
  PM Quote Reply
53rd Post
RegUS_PatOff
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sat Sep 24th, 2005
Location: Milwaukee, Wisconsin USA
Posts: 16509
Flavorite Brew: Indian Head. Black & White
Status:
Offline
Shawnna wrote: oops.



Here's the version 2 with it hopefully set up right?

oops ... move the Red Connection on the Meter to the right "V"  :)



____________________
The new repair forums==> http://appliantology.org
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 03:11 am
  PM Quote Reply
54th Post
Shawnna



Joined: Wed Jan 4th, 2006
Location: Seattle Area, Washington USA
Posts: 77
Flavorite Brew: Corona
Status:
Offline
oh boy.  I'm getting confused now.  I tested the wall outlet - but had to move the probes around on the meter to get it to register.  Here's a pic.



And then I read that I needed to move the red probe over.  So here is the microwave board test with that set up.



Did I do it right?



____________________
"The only thing we found that makes the emptiness bearable is................... each other."

From the movie "Contact"
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 03:17 am
  PM Quote Reply
55th Post
appl.tech.29501
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sun Oct 7th, 2007
Location: South Carolina USA
Posts: 6784
Flavorite Brew: waffle house coffee
Status:
Offline
ok, thats a great sign

if you visually follow that red wire it will lead to an object looking like this



the other side of this thermostat will have a black wire attached to it.

leave you meter lead connected to the white wire like it already is and take the other meter lead off the red wire and touch it to the black wire end

if your meter now shows 120V your thermostat is bad



____________________
If you would like to make a donation you may do so at the link below

http://homepage.mac.com/zenzoidman/appl.tech.29501/
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 03:31 am
  PM Quote Reply
56th Post
Shawnna



Joined: Wed Jan 4th, 2006
Location: Seattle Area, Washington USA
Posts: 77
Flavorite Brew: Corona
Status:
Offline
appl.tech.29501 wrote: ok, thats a great sign

if you visually follow that red wire it will lead to an object looking like this



the other side of this thermostat will have a black wire attached to it.

leave you meter lead connected to the white wire like it already is and take the other meter lead off the red wire and touch it to the black wire end

if your meter now shows 120V your thermostat is bad


I do believe that is the problem.  Meter read 121.6 when I touched it to the black wire.

I think we may have found the problem, right?



____________________
"The only thing we found that makes the emptiness bearable is................... each other."

From the movie "Contact"
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 03:34 am
  PM Quote Reply
57th Post
appl.tech.29501
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sun Oct 7th, 2007
Location: South Carolina USA
Posts: 6784
Flavorite Brew: waffle house coffee
Status:
Offline
double check that the other side of the thermostat "red wire" shows no voltage when you touch it



____________________
If you would like to make a donation you may do so at the link below

http://homepage.mac.com/zenzoidman/appl.tech.29501/
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 03:38 am
  PM Quote Reply
58th Post
Shawnna



Joined: Wed Jan 4th, 2006
Location: Seattle Area, Washington USA
Posts: 77
Flavorite Brew: Corona
Status:
Offline
No voltage at all when I touch the red wire on the thermostat.




____________________
"The only thing we found that makes the emptiness bearable is................... each other."

From the movie "Contact"
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 04:08 am
  PM Quote Reply
59th Post
appl.tech.29501
Fellow, Academy of Sublime Masters of Appliantology


Joined: Sun Oct 7th, 2007
Location: South Carolina USA
Posts: 6784
Flavorite Brew: waffle house coffee
Status:
Offline
ok, sorry my computer crashed grrrr.

unplug the microwave and remove the thermostat post any numbers that are on it (they may be small) also where exactly is it mounted on the microwave?

there 3 thermostats on this unit and they are all different values and the parts breakdown isnt the best. i want to make sure I link you to the correct part.



____________________
If you would like to make a donation you may do so at the link below

http://homepage.mac.com/zenzoidman/appl.tech.29501/
Back To Top PM Quote Reply

 Posted: Tue Jul 27th, 2010 04:18 am
  PM Quote Reply
60th Post
Shawnna



Joined: Wed Jan 4th, 2006
Location: Seattle Area, Washington USA
Posts: 77
Flavorite Brew: Corona
Status:
Offline
No worries hun.  I'm getting ready to call it a night online anyway.  My car broker down today and I spend over two hours on the bus to get home.  Need some sleep I'm afraid.

The thermostat is located in the upper left had side (if you standing in front of the microwave and it is set down in a bit of a pocket.

How do I remove it?  Can I use needle nose pliers or tweezers (tweezers I have, needle nose pliers I can't find atm)




____________________
"The only thing we found that makes the emptiness bearable is................... each other."

From the movie "Contact"
Back To Top PM Quote Reply

Current time is 07:04 am Tell a friend about this page... all your other friends are doing it! Page:  First Page Previous Page  1  2  3  4  Next Page Last Page
- > Do-It-Yourself Appliance Repair Help > The Kitchen Appliance Repair Forum > Whirlpool Gold Built In Microwave GH7155H5 Top



Find Appliance Parts & Diagrams Here
Enter a model number, part number, type of appliance, brand, or even a part description.

365-day return policy on all parts ordered through this site!

FAQs | Contact | Apprenticeship | Parts | Model Number Help | Newsletter | Beer

Your Sometimes-Lucid Host:
- Home
"If I can't help you fix your appliance and make you 100% satisfied, I will come to your home and slice open my belly, spilling my steaming entrails onto your floor."


UltraBB 1.17 Copyright © 2007-2008 Data 1 Systems
Page processed in 0.1580 seconds (11% database + 89% PHP). 31 queries executed.

Web Analytics
