| WhirlPool Stove SF330PEW | Rate Topic |
| Author | Post |
|---|
| Posted: Fri Nov 13th, 2009 05:26 am |
|
1st Post |
|
jonbarr62 Grasshopper
|
The Stove oven pilot light ignites but the burner will not come on. Any suggestions?
|
||||||||||||||
| |||||||||||||||
| Posted: Fri Nov 13th, 2009 11:45 am |
|
2nd Post |
|
RegUS_PatOff Fellow, Academy of Sublime Masters of Appliantology
|
Whirlpool SF330PEW Wiring Diagram shows an Oven Spark Ignitor.. Parts List shows a Oven Glow Ignitor ... which one do you have ? If it's the Glow Ignitor, they get weak. If you could measure the current draw, it should be about 2.8A to 3.2A after 30 seconds ... if you have a Harbor Freight Store near you sometimes on sale... bring print-out to store click on picture 96308 $ 12.99 coupon 11/16/09 click here  click on picture 95683 $ 19.99  click on picture 95652 $ 19.99  link Harbor Freight Digital Clamp Meters
____________________ RegUS_PatOff http://www.youtube.com/watch?v=oPAY2LsKVEw my video production: “Easter Seals Walk With Me” (also in HQ) http://www.youtube.com/watch?v=-EBiLyYXMiA Upon leaving this Earth "Do you want the Smoking or Non-Smoking section ?" |
|||||||||||||
| ||||||||||||||
| Posted: Fri Nov 13th, 2009 10:41 pm |
|
3rd Post |
|
jonbarr62 Grasshopper
|
The oven does ignite but with just a small pilot. The oven does not fully ignite. Would a defective thermst cause this problem?..what are the signs for a defective therm.?
|
||||||||||||||
| |||||||||||||||
| Posted: Sat Nov 14th, 2009 10:33 am |
|
4th Post |
|
Samurai Appliance Repair Man Fermented Grand Master of Appliantology
|
RegUS_PatOff wrote:Whirlpool SF330PEW Wiring Diagram shows an Oven Spark Ignitor.. Weirdness! and to make things weirderer, jonbarr offers the following additional comment... The oven does ignite but with just a small pilot. The oven does not fully ignite. ... which would seem to indicate a standing pilot ignition. So, three possible ignition systems here and the literature we find doesn't clarify. It's up to you jonbarr, as the designated eyeballs on the scene. Take a picture of your oven ignition system and post it here so we can see whatcha got.
____________________  If I've helped you with your repair, please consider supporting my flavorite charity: http://beer.fixitnow.com |
|||||||||||||
| ||||||||||||||
| Posted: Sat Nov 14th, 2009 12:43 pm |
|
5th Post |
|
jonbarr62 Grasshopper
|
Yes , I see a small pilot light lit, hitting the sensor. I tried cleaning the sensor. problem still exist. This sensor has a copper wire running along the backside of the stove. I believe this runs to either another valve or thermostat. I am not sure. I would have to take another visual look.
|
||||||||||||||
| |||||||||||||||
| Posted: Sat Nov 14th, 2009 01:54 pm |
|
6th Post |
|
Samurai Appliance Repair Man Fermented Grand Master of Appliantology
|
Post some pitchers so we can get some eyeball action going!
____________________ If I've helped you with your repair, please consider supporting my flavorite charity: http://beer.fixitnow.com |
|||||||||||||
| ||||||||||||||
| Posted: Sun Nov 15th, 2009 08:45 am |
|
7th Post |
|
Budget Appliance Repair Fellow, Academy of Sublime Masters of Appliantology
|
jonbarr62 wrote: Yes , I see a small pilot light lit, hitting the sensor. I tried cleaning the sensor. problem still exist. This sensor has a copper wire running along the backside of the stove. I believe this runs to either another valve or thermostat. I am not sure. I would have to take another visual look. Sounds like a standard MSC style safety valve system. You may just need to clean out the pilot oriface. You should see a small pilot burning if standing pilot or if it is a spark ignitor than a large pilot should be engulfing the little sensor bulb. If the pilot orifice gets plugged it won't create enough heat to open the safety valve correctly. On a standing pilot system, when the oven t-stat is turned on the secondary pilot flame is turned on to heat the sensor bulb. If it's a spark ignitor the pilot flame should light up full heat, (primary and secondary), flame at the same time, then when the oven t-stat is satisfied the secondary pilot will shut down and let the sensor bulb cool. The oven t-stat controls the secondary pilot on/off to modulate the oven temp. A quick test would be to turn the oven on and then give the pilot a little extra help with a bbq lighter heating the sensor bulb, (make sure to keep your arm and hand down low and away from the main burner). The problem we seem to have about looking up parts is the incomplete model# given: SF330PEW SF330PEWN0 SF330PEWN2 SF330PEWN3 SF330PEWN4 SF330PEWN5 SF330PEWN6 SF330PEWN7 SF330PEWN8 SF330PEWQ0 SF330PEWQ1 SF330PEWQ2 SF330PEWQ3 SF330PEWQ4 SF330PEWW0 SF330PEWW2 SF330PEWW3 SF330PEWW4 SF330PEWW5 SF330PEWW6 SF330PEWW7 SF330PEWW8 SF330PEWW9 SF330PEWZ0 SF330PEWZ1 Last edited on Sun Nov 15th, 2009 08:56 am by Budget Appliance Repair ____________________ William Burk (Willie) Willie's Budget Appliance Repair Eureka, CA 95501 |
||||||||||||||
| |||||||||||||||
| Posted: Sun Nov 15th, 2009 10:13 am |
|
8th Post |
|
RegUS_PatOff Fellow, Academy of Sublime Masters of Appliantology
|

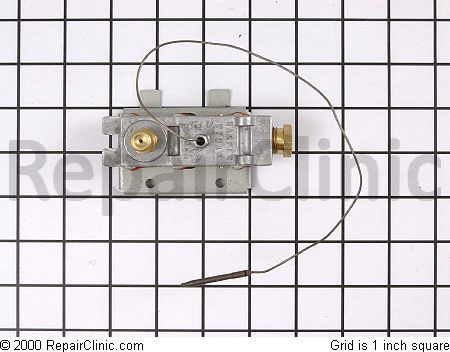

ahh, yes, the models with the Spark Ignitor use a Gas Safety Valve with a built-in Thermocouple click on picture  either: The Pilot Flame isn't large enough (dirty orifice) The Thermocoupler isn't close enough to the Pilot Flame The Thermocouple (Gas Valve assembly) is bad for whatever reason, the following model numbers that I placed an "x" after use Spark Ignitors SF310PEWW0 SF310PEWW2 SF310PEWW3 SF316PEWN0 SF316PEWW0 SF3300EWW0 SF3300EWW1 SF330PEWN0 SF330PEWN2 SF330PEWN3 SF330PEWN4 SF330PEWN5 SF330PEWN6 SF330PEWN7 x SF330PEWN8 x SF330PEWQ0 SF330PEWQ1 SF330PEWQ2 SF330PEWQ3 x SF330PEWQ4 x SF330PEWW0 SF330PEWW2 SF330PEWW3 SF330PEWW4 SF330PEWW5 SF330PEWW6 SF330PEWW7 SF330PEWW8 x SF330PEWW9 x SF330PEWZ0 x SF330PEWZ1 x
____________________ RegUS_PatOff http://www.youtube.com/watch?v=oPAY2LsKVEw my video production: “Easter Seals Walk With Me” (also in HQ) http://www.youtube.com/watch?v=-EBiLyYXMiA Upon leaving this Earth "Do you want the Smoking or Non-Smoking section ?" |
|||||||||||||
| ||||||||||||||
| Posted: Sun Nov 15th, 2009 04:37 pm |
|
9th Post |
|
jonbarr62 Grasshopper
|
The model is SF330PEWQ4. I did pull out the sensor bulb some and try to clean off the end. The pilot oriface appeared to be clear. What i dont remember seeing was the safety valve. I am sure it was there, I just did not recongize it. I will try to buffer the pilot with a lighter and see if that works. Is there a test that can be done on the safety valve out of circuit?...Thank you thus far. Last edited on Sun Nov 15th, 2009 04:51 pm by jonbarr62 |
||||||||||||||
| |||||||||||||||
| Posted: Sun Nov 15th, 2009 09:03 pm |
|
10th Post |
|
Samurai Appliance Repair Man Fermented Grand Master of Appliantology
|
jonbarr62 wrote:The pilot oriface appeared to be clear. Unless you have a Certification of Calibrated Eyeballs, you cannot possibly tell the orifice "appears to be clear." Remove orifice, apply several drops of isopropyl alcohol and blow out the gookus with compressed air at 80 to 100 psig using a rubber-tipped air nozzle. Then, and only then, can you assume the orifice is undefiled.
____________________ If I've helped you with your repair, please consider supporting my flavorite charity: http://beer.fixitnow.com |
|||||||||||||
| ||||||||||||||
| Posted: Sun Nov 15th, 2009 10:40 pm |
|
11th Post |
|
appl.tech.29501 Fellow, Academy of Sublime Masters of Appliantology
|
Samurai Appliance Repair Man wrote: Post some pitchers so we can get some eyeball action going! yep even those peepers couldn"t tell...haha
____________________ If you would like to make a donation you may do so at the link below http://homepage.mac.com/zenzoidman/appl.tech.29501/ |
||||||||||||||
| |||||||||||||||
| Posted: Fri Nov 20th, 2009 08:22 pm |
|
12th Post |
|
jonbarr62 Grasshopper
|
Can someone tell me if there is always gas present on the input of the gas safety valve...or is it just present when you turn on the oven and get the pilot light ignited.The question being....I had removed the saftey valve and found the sensing line was broken. I dismantled the valve and reassembled the valve so it would stay open. I was able to test the rest of the oven. The oven did ignite and regulate temperature. The Oven did shut off when the knob was turned to off. Should there be any concern of the saftety valve staying open, with the oven knob turned to off, until I can get my replacement part?... Last edited on Fri Nov 20th, 2009 08:33 pm by jonbarr62 |
|||||||||||||
| ||||||||||||||
| Posted: Fri Nov 20th, 2009 10:24 pm |
|
13th Post |
|
RegUS_PatOff Fellow, Academy of Sublime Masters of Appliantology
|
jonbarr62 wrote: ... I dismantled the valve and reassembled the valve so it would stay open....  WHOA, the Gas Safety Valve is the ONLY thing to control the Gas flow ON/OFF.
____________________ RegUS_PatOff http://www.youtube.com/watch?v=oPAY2LsKVEw my video production: “Easter Seals Walk With Me” (also in HQ) http://www.youtube.com/watch?v=-EBiLyYXMiA Upon leaving this Earth "Do you want the Smoking or Non-Smoking section ?" |
||||||||||||||
| |||||||||||||||
| Posted: Fri Nov 20th, 2009 10:38 pm |
|
14th Post |
|
Pegi Fellow, Academy of Sublime Masters of Appliantology
|
jonbarr62 sounds like he has a death wish....get the gas turned off to this oven before someone gets killed....never heard anything like this being done to a gas range...
____________________ Moderator & Assistant Admin. for Servicetechhelp Associaton, Inc. http://www.servicetechhelp.com STH HELPDESK URL.... http://www.servicetechhelp.com/h2desk/ ___________________________________ For Gordon... http://serviceeveryday.com/ |
|||||||||||||
| ||||||||||||||
| Posted: Sat Nov 21st, 2009 01:14 am |
|
15th Post |
|
Samurai Appliance Repair Man Fermented Grand Master of Appliantology
|
jonbarr62 wrote:. I dismantled the valve and reassembled the valve so it would stay open. House go boom. Pants go brown.  Shut the gas off NOW!
____________________ If I've helped you with your repair, please consider supporting my flavorite charity: http://beer.fixitnow.com |
||||||||||||||
| |||||||||||||||
| Posted: Sat Nov 21st, 2009 02:14 am |
|
16th Post |
|
jonbarr62 Grasshopper
|
ok...but my question was not answered. Is there gas present at the intake of the safety gas valve when the oven knob is in the off position? Last edited on Sat Nov 21st, 2009 02:19 am by jonbarr62 |
|||||||||||||
| ||||||||||||||
| Posted: Sat Nov 21st, 2009 02:31 am |
|
17th Post |
|
Pegi Fellow, Academy of Sublime Masters of Appliantology
|
Apparently not somehow in your case or you would no longer be able to post since your house with your computer in it would have blown up by now?? The safety is opened by the heat of the pilot flame if I read this thread correctly.....now if you have the valve jammed open like you say and the gas was on to the range/oven it would be spewing gas into the house with no way to stop it without turning the gas off behind the stove or at the gas meter....sooooooooooo this tells us you do not have it jammed open like you posted.....since either the whole block would have blown up by now or your whole range with your kitchen and house would be burned down by now into smoldering ruins.....you really do need to call out a professional tech before you do hurt yourself and/or others....this is no joking matter anymore...call out a pro.....
____________________ Moderator & Assistant Admin. for Servicetechhelp Associaton, Inc. http://www.servicetechhelp.com STH HELPDESK URL.... http://www.servicetechhelp.com/h2desk/ ___________________________________ For Gordon... http://serviceeveryday.com/ |
||||||||||||||
| |||||||||||||||
| Posted: Sat Nov 21st, 2009 02:32 am |
|
18th Post |
|
jonbarr62 Grasshopper
|
I followed the tubing from the oven temp therm control. There are two tubes. One small one that goes to the pilot and one larger tube that goes to the safety valve. I am assuming that since I was actually able to get the oven started and the temp did regulate, and I was able to shut the main oven burner off, that there is no gas at the intake of the safety valve when the oven temp control is in the off position. Would you say that the safety valve is actually the second gas valve and the oven temp control is the first valve in line that needs to open?...please explain...
|
|||||||||||||
| ||||||||||||||
| Posted: Sat Nov 21st, 2009 02:48 am |
|
19th Post |
|
RegUS_PatOff Fellow, Academy of Sublime Masters of Appliantology
|
RegUS_PatOff wrote: the Gas Safety Valve is the ONLY thing to control the Gas flow ON/OFF. what's to explain ? jonbarr62 wrote: Is there gas present at the intake of the safety gas valve when the oven knob is in the off position? YES
____________________ RegUS_PatOff http://www.youtube.com/watch?v=oPAY2LsKVEw my video production: “Easter Seals Walk With Me” (also in HQ) http://www.youtube.com/watch?v=-EBiLyYXMiA Upon leaving this Earth "Do you want the Smoking or Non-Smoking section ?" |
||||||||||||||
| |||||||||||||||
| Posted: Sat Nov 21st, 2009 03:12 am |
|
20th Post |
|
jonbarr62 Grasshopper
|
The oven temp control must interupt the gas flow to the safety valve some how when in the off position. I do not hear or smell gas in the main oven burner. Correct me if I am wrong please.
|
|||||||||||||
| ||||||||||||||
